Guarded ETH/USDG venue

For a market maker or a USDG-native desk.

On this page

LiveEverything outside the proposed connectors is live. Runs on live blocks with the ETH / USD feed admitted.

WETH and USDG pools where a swap that pushes the price past a band around Chainlink's ETH / USD price, 10% each way by default, pays the pool's LPs a surcharge.

Why it is different. The pair where Hookr's Market Guard has an admitted feed today.

The pools

WETH quoted in USDG

1 pool · existing token WETH

USDG quoted in ETH

1 pool · existing token USDG

How the pools work together

  • Market Guard binds fail-closed: when the feed cannot answer, the pool refuses swaps until it does.
  • Arb recapture is on, and the guard checks each leg after its swap; it recaptures once What The Hook lists a WETH / USDG venue, which it does not yet.
  • Family Pulse would raise sells on both pools during a fast move. Proposed

Beside the pools and at launch

Proposed connectors

Walkthrough

Every section of the launch floor this combo uses, in order, with what to check, select and fill in each. The screenshots use WETH 0x0bd7d308f8e1639fab988df18a8011f41eacad73, then USDG 0x5fc5360d0400a0fd4f2af552add042d716f1d168 (the combo's subjects) as the token.

Full walkthrough: Launch 1: WETH quoted in USDG

Open in the builder

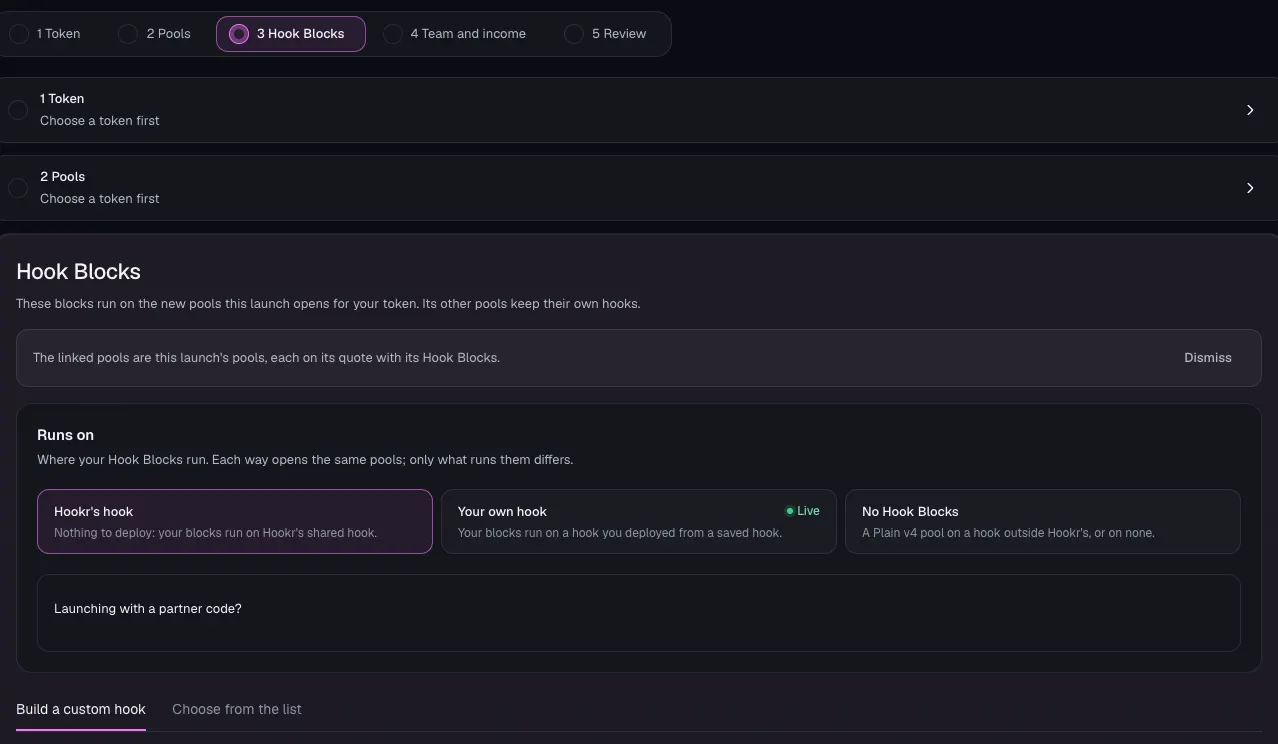

  1. Open the family

    • Open the launch page on this family.
    • Check that Hook Blocks says the linked pools are this launch's pools, and leave Runs on at Hookr's hook.
    Open the family

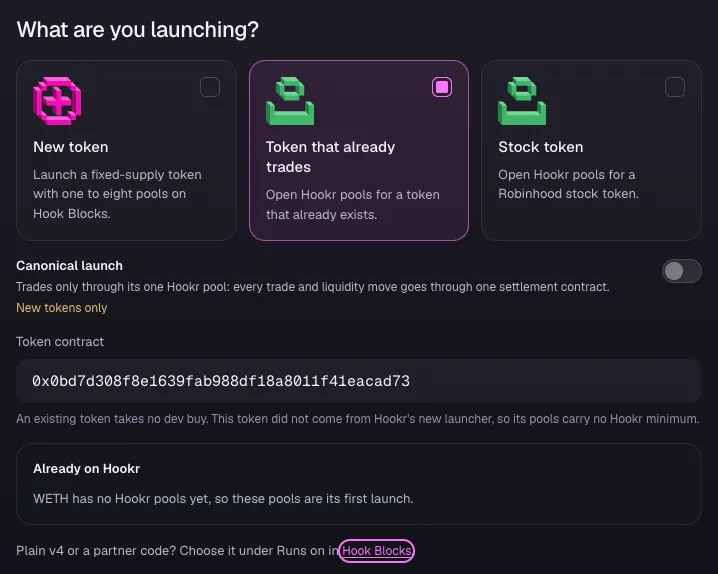

  2. Choose WETH

    • Click 1 Token.
    • Under What are you launching?, click Token that already trades.
    • In Token contract, paste WETH's address, 0x0bd7d308f8e1639fab988df18a8011f41eacad73 on Robinhood Chain.
    • Check that Already on Hookr reads WETH has no Hookr pools yet, so these pools are its first launch.
    • Click Continue.
    Choose WETH

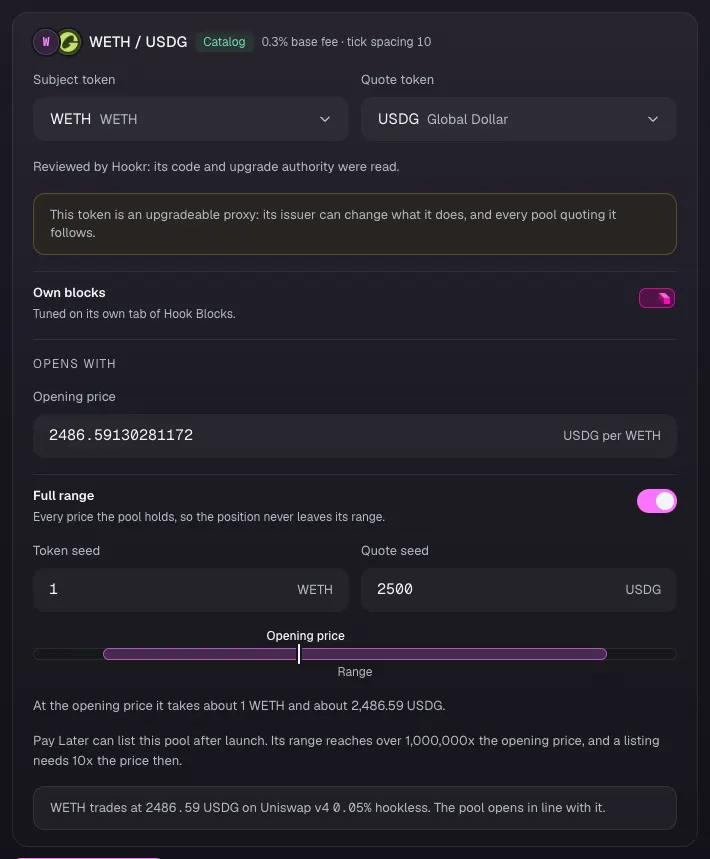

  3. Open WETH / USDG

    • Under Your pool, check the pair reads WETH / USDG with tick spacing 10.
    • Click Open at the market price. The image read WETH trades at 2486.59 USDG on Uniswap v4 0.05% hookless.
    • Turn on Full range.
    • Type the Token seed and the Quote seed you will add. The image uses 1 WETH and 2500 USDG as examples.
    • Click Continue.
    Open WETH / USDG

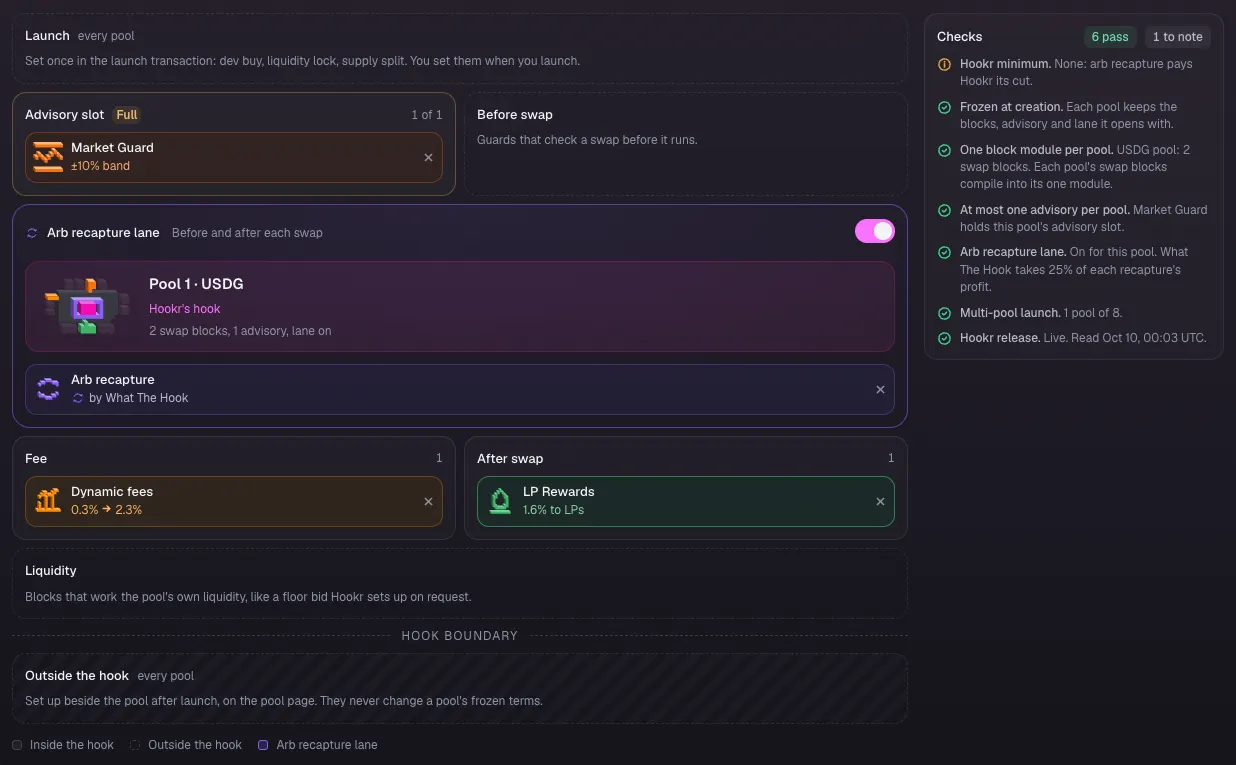

  4. Check the blocks

    • In Hook Blocks, check that Market Guard fills the Advisory slot (1 of 1).
    • Check the rest of the board: Arb recapture in the Arb recapture lane, Dynamic fees, and LP Rewards after the swap.
    Check the blocks

  5. Market Guard

    • Click Market Guard to open it.
    • Check that Price feed reads ETH / USD · Chainlink.
    • Keep Mode on Surcharge. Circuit breaker is deploying soon.
    • Leave Band at 10%, Ramp at 10%, Full surcharge at 1% and Price age limit at 25 hours (90000).
    Market Guard

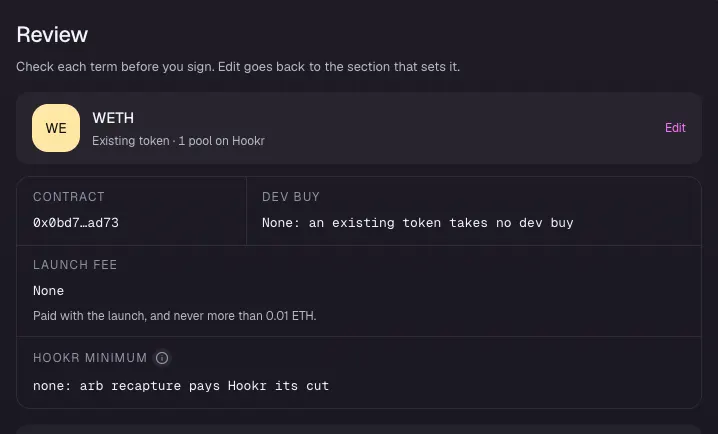

  6. Review the launch

    • Skip 4 Team and income: nothing there is needed.
    • Click 5 Review and check that Contract is WETH's address.
    Review the launch

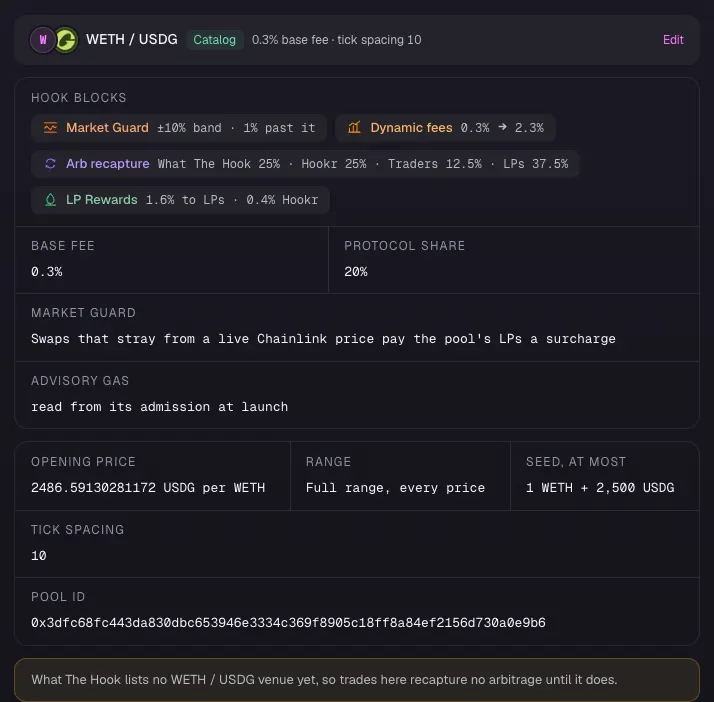

  7. The pool's terms

    • Check the pool card: Market Guard ±10% band · 1% past it, Dynamic fees 0.3% to 2.3%, Arb recapture, LP Rewards, Full range, tick spacing 10.
    • Read the note under it: What The Hook lists no WETH / USDG venue yet, so trades here recapture no arbitrage until it does.
    The pool's terms

  8. Before you sign

    • Check that Before this launch can be signed lists only Connect a wallet to launch.
    • Click Connect wallet when you are ready to sign.
    Before you sign
Full walkthrough: Launch 2: USDG quoted in ETH

Open in the builder

  1. Open the family

    • Open the launch page on this family.
    • Check that Hook Blocks says the linked pools are this launch's pools, and leave Runs on at Hookr's hook.
    Open the family

  2. Choose USDG

    • Click 1 Token.
    • Under What are you launching?, click Token that already trades.
    • In Token contract, paste USDG's address, 0x5fc5360d0400a0fd4f2af552add042d716f1d168 on Robinhood Chain.
    • Check that Already on Hookr reads USDG has no Hookr pools yet, so these pools are its first launch.
    • Click Continue.
    Choose USDG

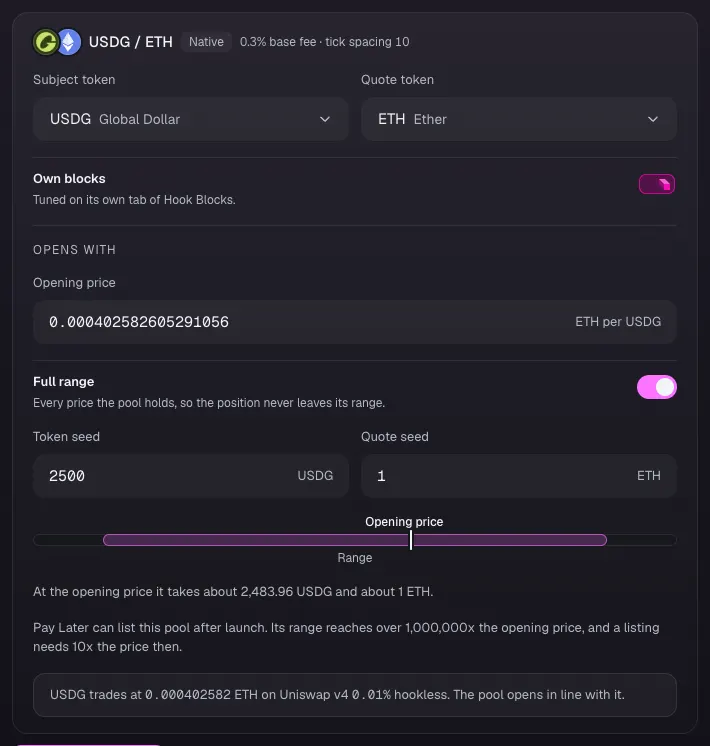

  3. Open USDG / ETH

    • Under Your pool, check the pair reads USDG / ETH with tick spacing 10.
    • Click Open at the market price. The image read USDG trades at 0.000402582 ETH on Uniswap v4 0.01% hookless.
    • Turn on Full range.
    • Type the Token seed and the Quote seed you will add. The image uses 2500 USDG and 1 ETH as examples.
    • Click Continue.
    Open USDG / ETH

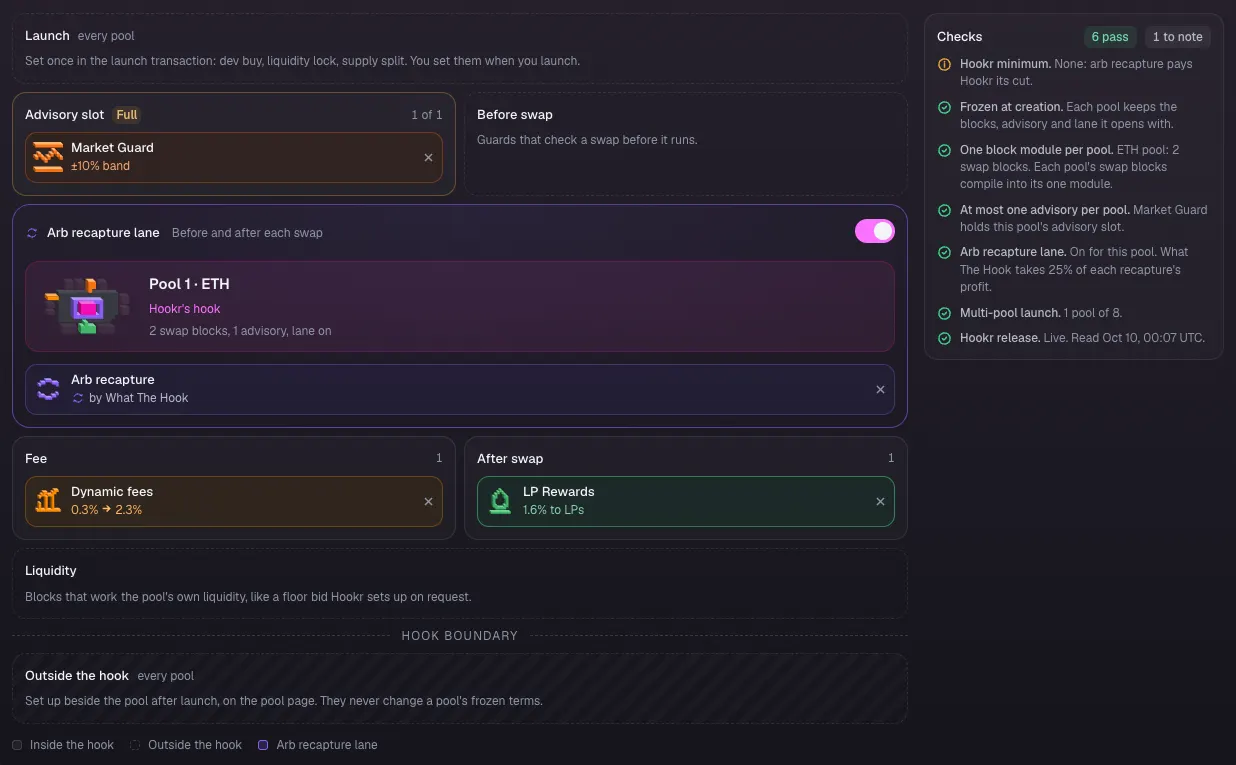

  4. Check the blocks

    • In Hook Blocks, check that Market Guard fills the Advisory slot (1 of 1).
    • Check the rest of the board: Arb recapture in the Arb recapture lane, Dynamic fees, and LP Rewards after the swap.
    Check the blocks

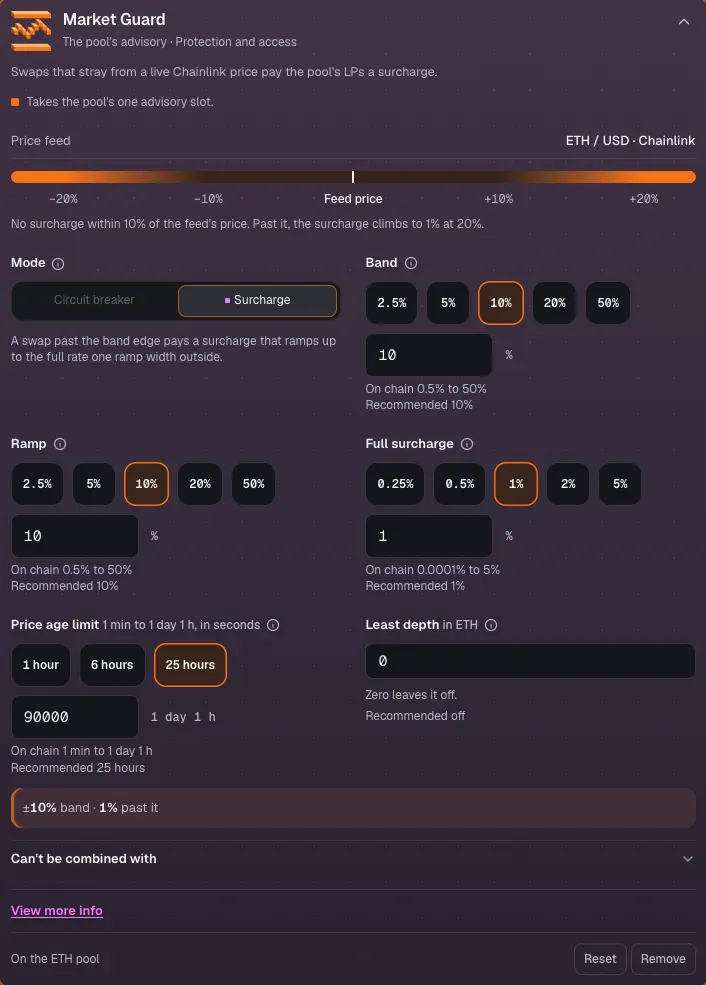

  5. Market Guard

    • Click Market Guard to open it.
    • Check that Price feed reads ETH / USD · Chainlink.
    • Keep Mode on Surcharge. Circuit breaker is deploying soon.
    • Leave Band at 10%, Ramp at 10%, Full surcharge at 1% and Price age limit at 25 hours (90000).
    Market Guard

  6. Review the launch

    • Skip 4 Team and income: nothing there is needed.
    • Click 5 Review and check that Contract is USDG's address.
    Review the launch

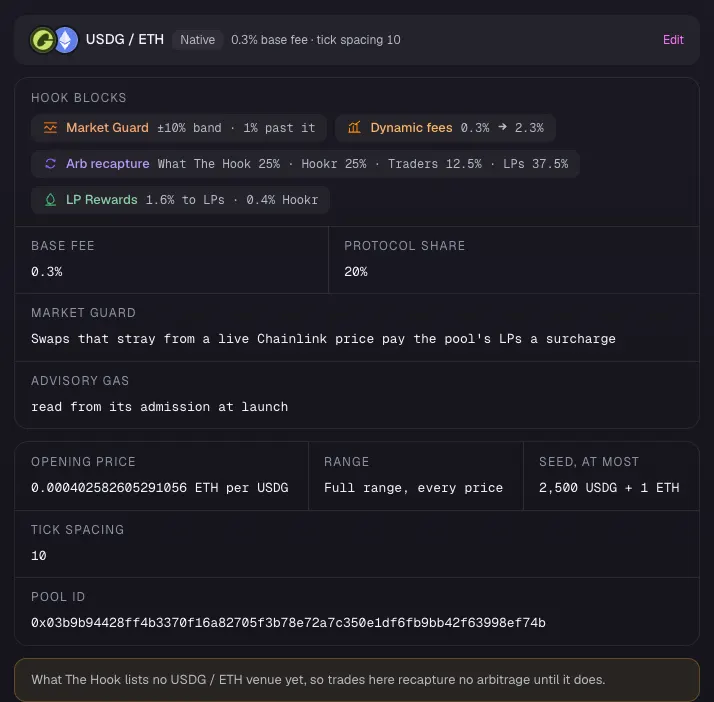

  7. The pool's terms

    • Check the pool card: Market Guard ±10% band · 1% past it, Dynamic fees 0.3% to 2.3%, Arb recapture, LP Rewards, Full range, tick spacing 10.
    • Read the note under it: What The Hook lists no USDG / ETH venue yet, so trades here recapture no arbitrage until it does.
    The pool's terms

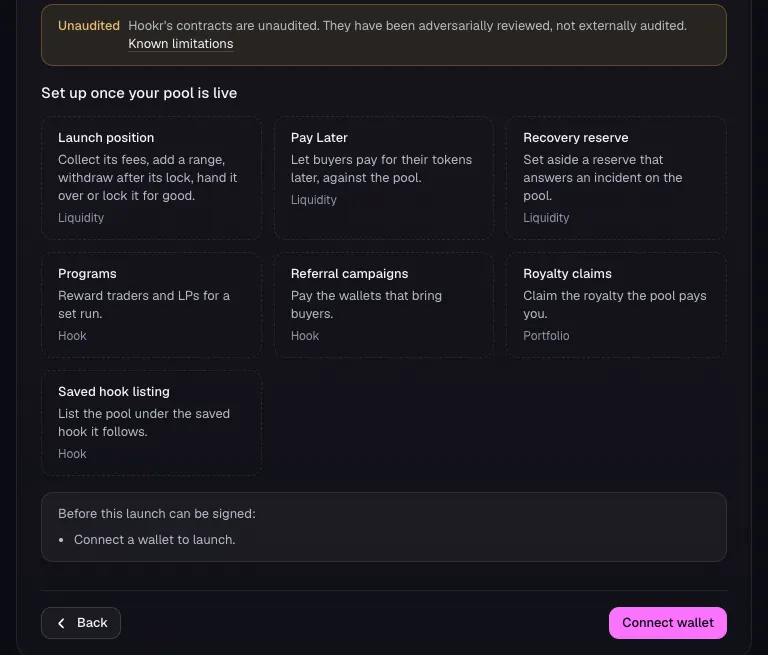

  8. Before you sign

    • Check that Before this launch can be signed lists only Connect a wallet to launch.
    • Click Connect wallet when you are ready to sign.
    Before you sign
